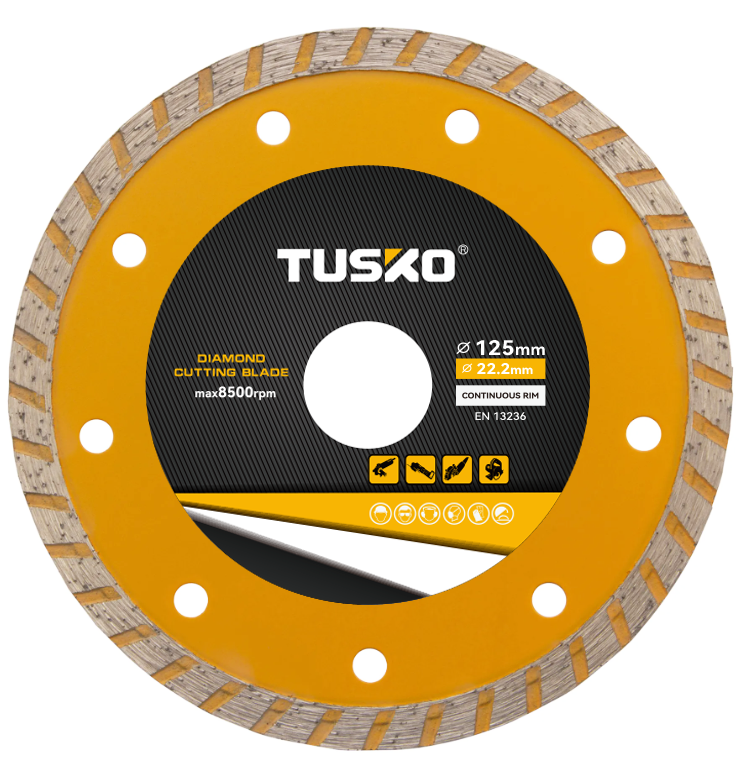

Diamond Saw Blade
Turbo Series
The TUSKO Turbo Series features a turbine-style rim for aggressive and fast cutting through dense construction materials. 10mm hot sintered diamond segments deliver superior performance on cured concrete, limestone, marble and paviours.
Concrete paving slabs, pipes and kerbs
Cured concrete, hard sandstone, limestone
Marble, paviours, facing bricks and slate
10mm hot sintered diamond segments
Applications
ConcreteLimestoneMarbleSandstone
Technical Specifications
| Item No. | Diameter (mm) | Diameter (in) | Layer 1 (mm) | Layer 2 (mm) | Height 1 (mm) | Height 2 (mm) | Hole (mm) |
|---|---|---|---|---|---|---|---|
| TT115 | 115 | 4 1/2" | 2 | 2 | 7 | 10 | 22.2 |
| TT125 | 125 | 5" | 2 | 2 | 7 | 10 | 22.2 |
| TT150 | 150 | 6" | 2 | 2.4 | 7 | 10 | 22.2 |
| TT180 | 180 | 7" | 2 | 2.4 | 7 | 10 | 22.2 |
| TT230 | 230 | 9" | 2 | 3 | 7 | 10 | 22.2 |
Custom Solutions Available
TUSKO offers full OEM/ODM customization. Contact our technical team for custom sizes,
diamond grit specifications, segment heights, and special applications.
