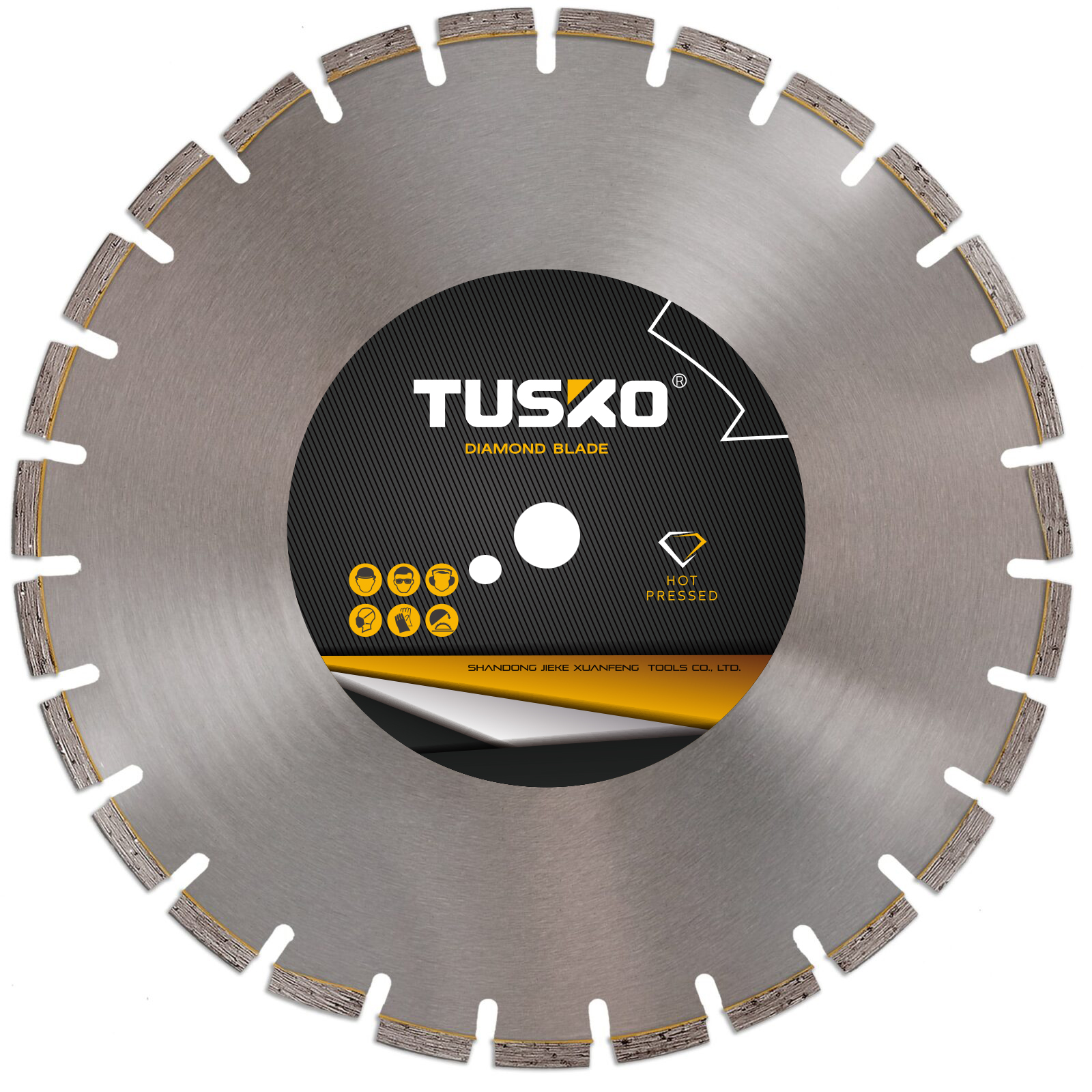

Diamond Saw Blade — Large Diameter
Segmented Series R
The TUSKO Segmented Series R is engineered for heavy road cutting machinery. Laser-welded 10mm segments deliver maximum bond strength for cement, asphalt and concrete cutting with diameters from 350mm up to 3000mm.
Concrete, kerb stones, roofing, brick paviours
10mm laser welded segments — maximum bond
Diameter from 350mm to 3000mm
Inner holes: 32mm, 35mm, 50mm, 60mm
Road cutting machine, wall saw, mine saw
Applications
Road CuttingAsphaltReinforced ConcreteWall Saw
Technical Specifications
| Item No. | Diameter (mm) | Layer (mm) | Layer 1 (mm) | Layer 2 (mm) | Hole 1 (mm) | Hole 2 (mm) |
|---|---|---|---|---|---|---|
| TR350 | 350 | 2.6 | 10 | 15 | 25.4 | 60 |
| TR400 | 400 | 2.7 | 10 | 15 | 25.4 | 60 |
| TR450 | 450 | 2.7 | 10 | 15 | 25.4 | 60 |
| TR500 | 500 | 3 | 10 | 15 | 25.4 | 60 |
| TR600 | 600 | 4.2 | 10 | 15 | 25.4 | 60 |
| TR700 | 700 | 4.5 | 10 | 15 | 25.4 | 60 |
| TR800 | 800 | 4.5 | 10 | 15 | 25.4 | 60 |
Custom Solutions Available
TUSKO offers full OEM/ODM customization. Contact our technical team for custom sizes,
diamond grit specifications, segment heights, and special applications.
