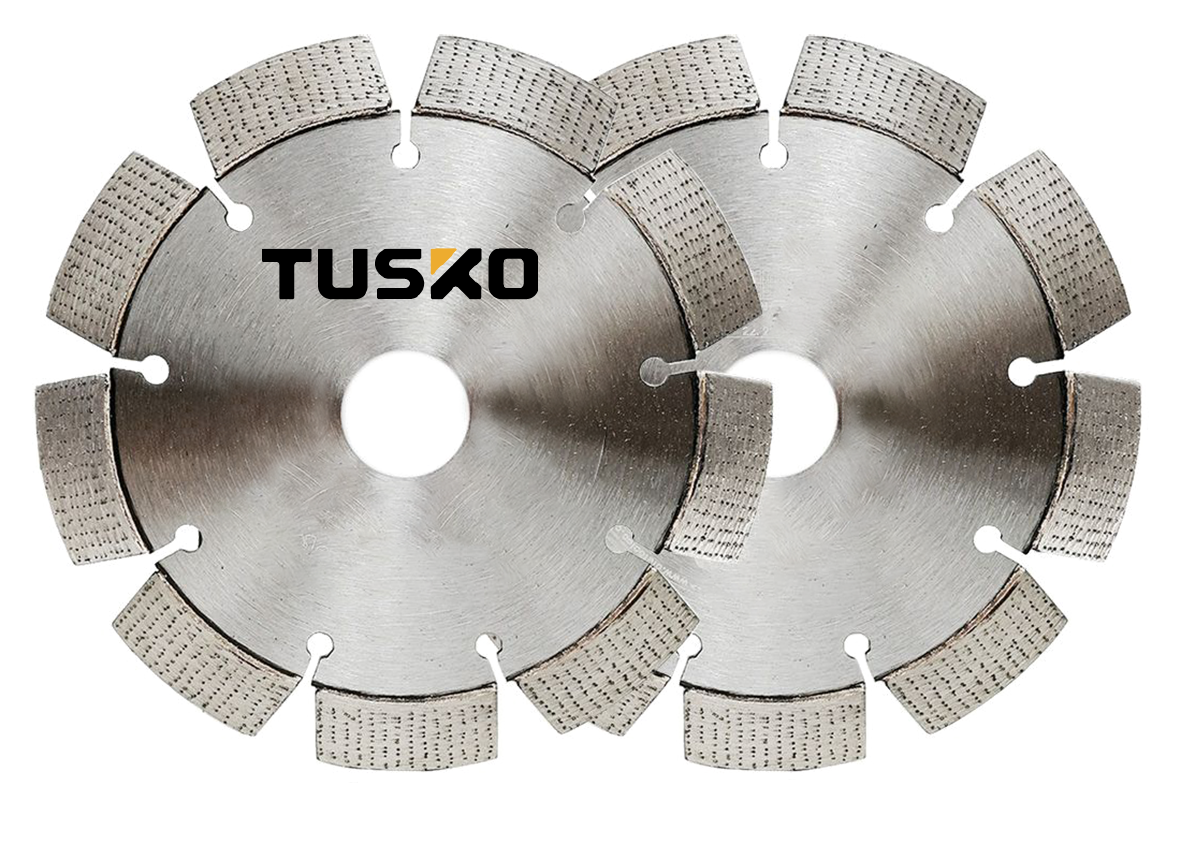

Diamond Saw Blade
Ordered Series
The TUSKO Ordered Series utilizes patented ordered diamond arrangement technology. Each diamond is precisely positioned for maximum cutting efficiency and blade longevity. Sharper and more durable than standard random-set blades. Customizable per customer requirements.
Laser welded precision ordered arrangement
Sharper and more durable than random-set blades
Customized according to customer requirements
Concrete, kerb stones, roofing tiles, brick paviours
Applications
ConcreteBrickStoneCustom Applications
Technical Specifications
| Item No. | Diameter (mm) | Diameter (in) | Layer 1 (mm) | Layer 2 (mm) | Height 1 (mm) | Height 2 (mm) | Hole (mm) |
|---|---|---|---|---|---|---|---|
| TSO115 | 115 | 4 1/2" | 2 | 2 | 7 | 10 | 22.2 |
| TSO125 | 125 | 5" | 2 | 2 | 7 | 10 | 22.2 |
| TSO150 | 150 | 6" | 2 | 2.4 | 7 | 10 | 22.2 |
| TSO180 | 180 | 7" | 2 | 2.4 | 7 | 10 | 22.2 |
| TSO230 | 230 | 9" | 2 | 3 | 7 | 10 | 22.2 |
| TSO300 | 300 | 12" | 2 | 3 | 10 | 10 | 22.2 |
| TSO350 | 350 | 14" | 2 | 3.2 | 10 | 10 | 25.4 |
Custom Solutions Available
TUSKO offers full OEM/ODM customization. Contact our technical team for custom sizes,
diamond grit specifications, segment heights, and special applications.
